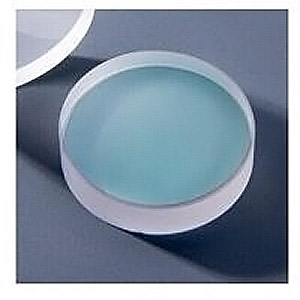

1. Single wavelength high damage threshold high dielectric film mirror
In the specified laser wavelength, it has a high reflectivity and a high damage threshold. Uses for laser cavity and other laser applications. Using a physical vapor deposition method (CVD) to plate multilayer dielectric film on a substrate, so the film¡¯s firmly is very high, can withstand repeated cleaning.
2. Broadband Dielectric Mirrors
It can ensure the high reflectivity in the wide band. Suitable for tunable lasers and white light. Components of stock are mirrors with the incidence of 45˚ angle. Other angles of incidence angle can be customized according to customer requirements.
3. High Energy Excimer Laser Mirrors
It is the best choice of the UV application at the most demanding condition. The product can be used in conjunction with the excimer laser. Thermal stability of high-precision UV grade fused quartz substrate, a small wavefront aberration. All mirrors are designed specifically for 45˚ angle, and ultra-low polarization dependent loss.
Features:
High damage threshold, up to 5J / cm2
Low Loss Dielectric Coating
For a wavelength of 193nm, 248nm, 308nm and 351nm of laser
4. Hollow retroreflector
Hollow Retroreflectors are constructed of three first surface mirrors assembled into a corner cube. This produces a lightweight ¡°hollow corner cube¡± that is totally insensitive to position and movement. The result is that parallel incident light is reflected back to the source with great accuracy, regardless of the angle of incidence. Since the optical path is in air, this configuration eliminates material absorption and chromatic aberrations present in solid glass prism-type retroreflectors. The larger housings feature a variety of mounting holes on the back plate.
